Fires for Combat Log events such as a player casting a spell or an NPC taking damage.

• COMBAT_LOG_EVENT only reflects the filtered events in the combat log window
• COMBAT_LOG_EVENT_UNFILTERED (CLEU) is unfiltered, making it preferred for use by addons.

Both events have identical parameters. The event payload is returned from CombatLogGetCurrentEventInfo(), or from CombatLogGetCurrentEntry() if selected using CombatLogSetCurrentEntry().

Base Parameters

1st Param	2nd Param	3rd Param	4th Param	5th Param	6th Param	7th Param	8th Param	9th Param	10th Param	11th Param
timestamp	subevent	hideCaster	sourceGUID	sourceName	sourceFlags	sourceRaidFlags	destGUID	destName	destFlags	destRaidFlags

timestamp

number - Unix Time in seconds with milliseconds precision, for example 1555749627.861. Similar to time() and can be passed as the second argument of date().

subevent

string - The combat log event, for example SPELL_DAMAGE.

hideCaster

boolean - Returns true if the source unit is hidden (an empty string).^[1]

guid

string - Globally unique identifier for units (NPCs, players, pets, etc), for example "Creature-0-3113-0-47-94-00003AD5D7".

name

string - Name of the unit.

flags

number - Contains the flag bits for a unit's type, controller, reaction and affiliation. For example 68168 (0x10A48): Unit is the current target, is an NPC, the controller is an NPC, reaction is hostile and affiliation is outsider.

raidFlags

number - Contains the raid flag bits for a unit's raid target icon. For example 64 (0x40): Unit is marked with .

Events

Combat log events consist of a prefix and suffix part, with their related parameters. For a full example see #Payload.

Prefixes

Spell IDs are always 0 on vanilla.

Prefix	1st Param (12th)	2nd Param (13th)	3rd Param (14th)
SWING
RANGE	spellId	spellName	spellSchool
SPELL	spellId	spellName	spellSchool
SPELL_PERIODIC	spellId	spellName	spellSchool
SPELL_BUILDING	spellId	spellName	spellSchool
ENVIRONMENTAL	environmentalType

Suffixes

The parameters for critical, glancing, crushing, and isOffHand are true/false flags.

Suffix	1st Param (15th)	2nd Param (16th)	3rd Param (17th)	4th Param (18th)	5th Param (19th)	6th Param (20th)	7th Param (21st)	8th Param (22nd)	9th Param (23rd)	10th Param (24th)
_DAMAGE	amount	overkill	school	resisted	blocked	absorbed	critical	glancing	crushing	isOffHand
_MISSED	missType	isOffHand	amountMissed	critical
_HEAL	amount	overhealing	absorbed	critical
_HEAL_ABSORBED	extraGUID	extraName	extraFlags	extraRaidFlags	extraSpellID	extraSpellName	extraSchool	absorbedAmount	#totalAmount
_ABSORBED
_ENERGIZE	amount	overEnergize	powerType	#maxPower
_DRAIN	amount	powerType	extraAmount	#maxPower
_LEECH	amount	powerType	extraAmount
_INTERRUPT	extraSpellId	extraSpellName	extraSchool
_DISPEL	extraSpellId	extraSpellName	extraSchool	auraType
_DISPEL_FAILED	extraSpellId	extraSpellName	extraSchool
_STOLEN	extraSpellId	extraSpellName	extraSchool	auraType
_EXTRA_ATTACKS	amount
_AURA_APPLIED	auraType	amount
_AURA_REMOVED	auraType	amount
_AURA_APPLIED_DOSE	auraType	amount
_AURA_REMOVED_DOSE	auraType	amount
_AURA_REFRESH	auraType	#amount
_AURA_BROKEN	auraType
_AURA_BROKEN_SPELL	extraSpellId	extraSpellName	extraSchool	auraType
_CAST_START
_CAST_SUCCESS
_CAST_FAILED	failedType
_INSTAKILL	#unconsciousOnDeath
_DURABILITY_DAMAGE
_DURABILITY_DAMAGE_ALL
_CREATE
_SUMMON
_RESURRECT

Special events

Subevent	Prefix to use	Suffix to use
DAMAGE_SPLIT	SPELL	_DAMAGE
DAMAGE_SHIELD	SPELL	_DAMAGE
DAMAGE_SHIELD_MISSED	SPELL	_MISSED

Subevent	1st Param (12th)	2nd Param (13th)	3rd Param (14th)
ENCHANT_APPLIED	spellName	itemID	itemName
ENCHANT_REMOVED	spellName	itemID	itemName
PARTY_KILL
UNIT_DIED	recapID	#unconsciousOnDeath
UNIT_DESTROYED	recapID	#unconsciousOnDeath
UNIT_DISSIPATES	recapID	#unconsciousOnDeath

Parameter Values

Spell School

Type (bitmask)	Type (decimal)	Name	Combination
00000001	1	Physical	#FFFF00   255, 255, 0
00000010	2	Holy	#FFE680   255, 230, 128
00000100	4	Fire	#FF8000   255, 128, 0
00001000	8	Nature	#4DFF4D   77, 255, 77
00010000	16	Frost	#80FFFF   128, 255, 255
00100000	32	Shadow	#8080FF   128, 128, 255
01000000	64	Arcane	#FF80FF   255, 128, 255
Double schools
00000011	3	Holystrike	Holy, Physical
00000101	5	Flamestrike	Fire, Physical
00000110	6	Radiant (Holyfire)	Fire, Holy
00001001	9	Stormstrike	Nature, Physical
00001010	10	Holystorm	Nature, Holy
00001100	12	Volcanic	Nature, Fire
00010001	17	Froststrike	Frost, Physical
00010010	18	Holyfrost	Frost, Holy
00010100	20	Frostfire	Frost, Fire
00011000	24	Froststorm	Frost, Nature
00100001	33	Shadowstrike	Shadow, Physical
00100010	34	Twilight (Shadowlight)	Shadow, Holy
00100100	36	Shadowflame	Shadow, Fire
00101000	40	Plague (Shadowstorm)	Shadow, Nature
00110000	48	Shadowfrost	Shadow, Frost
01000001	65	Spellstrike	Arcane, Physical
01000010	66	Divine	Arcane, Holy
01000100	68	Spellfire	Arcane, Fire
01001000	72	Astral (Spellstorm)	Arcane, Nature
01010000	80	Spellfrost	Arcane, Frost
01100000	96	Spellshadow	Arcane, Shadow
Multi schools
00011100	28	Elemental	Frost, Nature, Fire
00111110	62	Chromatic	Shadow, Frost, Nature, Fire, Holy
01101010	106	Cosmic	Arcane, Shadow, Nature, Holy
01111100	124	Chaos	Arcane, Shadow, Frost, Nature, Fire
01111110	126	Magic	Arcane, Shadow, Frost, Nature, Fire, Holy
01111111	127	Chaos	Arcane, Shadow, Frost, Nature, Fire, Holy, Physical

Power Type

{{#if:

[[Enum.PowerType}}

Value	Field	Description
-2	HealthCost
-1	None
0	Mana	Mana will range from 0 to the maximum mana a unit has. Player mana pools are of a fixed size for all specializations except Arcane Mages, whose mastery increases their maximum mana. Players naturally regenerate mana at a constant rate dependent on their specialization, both in and out of combat, and some abilities and effects (ex [Life Tap], [Power Word: Solace], [Resurgence]) can directly generate mana. This is the default power type for most non-player units, although there are exceptions.
1	Rage	Rage is used by Warriors and Druids in bear form. Rage ranges from 0 to 100, but may be increased via player talents. Rage is generated by abilities and, for some specializations, taking damage or dealing damage with auto-attacks. Rage will decay to 0 while out of combat.
2	Focus	Focus is used by Hunters and their pets. Focus ranges from 0 to 100, though this can be increased by spec passives. It has a relatively slow passive regeneration rate, but certain abilities will generate focus directly.
3	Energy	Energy is used by Rogues, Monks, and Druids in cat form. Energy ranges from 0 to 100, but may be increased via player talents and spec passives. Energy regenerates rapidly.
4	ComboPoints	Combo Points are used by Rogues and Druids in cat form. Combo Points range from 0 to 5, but can be increased up to 6 by the [[Deeper Stratagem] Rogue talent or to 10 by the [Anticipation] Rogue talent. Combo Points are generated by abilities, talents, and passives, and are consumed by Finishing Moves to increase their potency. Combo Points will decay to 0 while out of combat. This value was previously used for hunter pets' happiness, which was deprecated in Cataclysm.
5	Runes	Runes are used as a power type for Death Knights. Deathknights have 6 runes available. As of , Deathknights no longer have different types of runes, and instead all 6 runes can be used for any ability which consumes them. Up to 3 runes can be regenerating at a time, with the other 3, if depleted, effectively having a recharge time of up to twice the normal rune recharge time. Rune recharge rate can be accelerated through [Runic Corruption], or runes can be instantly activated by [Blood Tap] or [Runic Empowerment], as well as a number of talents and set bonuses.
6	RunicPower	Runic Power is used by Death Knights. Runic Power ranges from 0 to 100, though it can be increased by talents and set bonuses. It is gained by spending runes on abilities, or directly by certain abilities, talents, and passive effects. Runic Power is spent on a limited set of damaging abilities, many of which help regenerate additional runes. Runic Power will decay to 0 while out of combat.
7	SoulShards	[Soul Shards] are collected by Warlocks, and range from 0 to 5, represented the number of filled Soul Shards. As of , this resources is now used by all 3 Warlock specializations. Soul Shards will naturally regenerate or decay as needed while out of combat until they reach 3 out of 5 filled. As of Patch 7.2.5, if the "unmodified" boolean argument to UnitPower is provided, the values returned for Soul Shards will range instead from 0 to 50, with each 10 representing a filled Soul Shard. This is to account for the ability of Warlock_talents#Destruction warlocks to generate fractional Soul Shards in increments of 1/10th, similar to how Burning Embers functioned in prior expansions.
8	LunarPower	Astral Power is used by Druids in moonkin form. Astral power goes from 0 to 100. Astral power will decay to 0 while out of combat.
9	HolyPower	Holy Power is used by Retribution Paladins. Holy Power ranges from 0 to 5, and will decay to 0 while out of combat.
10	Alternate	New power type since Cataclysm. Known uses: sound level on Atramedes, corruption level on Cho'gall, consumption level while in Iso'rath.
11	Maelstrom	The new Shaman resource in Legion, used by both Enhancement and Elemental shamans. Maelstrom ranges from 0 to 100 for Elemental and 0 to 150 for Enhancement, though it can be increased by talents and artifact traits. Maelstrom will decay to 0 while out of combat.
12	Chi	Chi is used by Windwalker Monks. Chi ranges from 0 to 5, and will decay to 0 while out of combat.
13	Insanity	Insanity is used by Shadow Priests. Insanity is generated by most Shadow Priest abilities, and will be consumed at an ever-increasing rate while the priest is in [Voidform], until it reaches 0 and the priest leaves Voidform (or dies horribly if [Surrender to Madness] is active). Insanity will decay to 0 while out of combat even if the priests is not in [Voidform].
14	Obsolete	Burning Embers were used by Destruction Warlocks prior to , which consolidated all warlock specs to use [Soul Shards]. Value returned would range from 1 to 3 (4 with  [Glyph of Burning Embers], representing number of completely filled Burning Embers. If a third argument "true" is included with UnitPower or UnitPowerMax, the value would instead range from 0 to 30 (40 with  [Glyph of Burning Embers]), representing the individual segments in each Ember. Each Ember had 10 segments, and most effects that generate Embers generate 1 segment per effect (for example, a cast of Incinerate generates one segment, so 10 casts generates a full Ember). As of , this power type is now obsolete.
15	Obsolete2	[Demonic Fury] was used by Demonology Warlocks prior to , which consolidated all warlock specs to use [Soul Shards]. Value returned would range from 0 to 1000. As of , this power type is now obsolete.
16	ArcaneCharges	Arcane Mage resource. Arcane Charges range from 0 to 5. They are generated by casting [Arcane Blast] and [Arcane Explosion], and consumed by [Arcane Barrage], though a number of abilities benefit from having charges without consuming them. Arcane Charges will decay to 0 while out of combat.
17	Fury	Havoc Demon Hunter. Fury is generated by [Demon's Bite], as well as a number of talents, and consumed by most Havoc abilities. Fury ranges from 0 to 100, though artifact traits can increase this to up to 170. Fury will decay to 0 while out of combat.
18	Pain	Vengeance Demon Hunter. Pain is generated by several Vengeance abilities (ex. [Shear], [Felblade]), and consumed by several others (ex. [Soul Cleave], [Demon Spikes]), predominantly for defensive purposes. A small amount of Pain is also generated when the Demon Hunter takes damage. Pain ranges from 0 to 100, and will decay to 0 while out of combat.
19	Essence	Added in 10.0.0
20	RuneBlood	Added in 10.0.0
21	RuneFrost	Added in 10.0.0
22	RuneUnholy	Added in 10.0.0
23	AlternateQuest	Added in 10.1.0
24	AlternateEncounter	Added in 10.1.0
25	AlternateMount	Added in 10.1.0
26	NumPowerTypes

Failed Type See the SPELL_FAILED GlobalStrings for a full list of failed types. "A more powerful spell is already active" "Another action is in progress" "Can't do that while asleep" "Can't do that while charmed" "Can't do that while confused" "Can't do that while fleeing" "Can't do that while horrified" "Can't do that while incapacitated" "Can't do that while moving" "Can't do that while silenced" "Can't do that while stunned" "Interrupted" "Invalid target" "No target" "Not enough energy" "Not enough mana" "Not enough rage" "Out of range" "Target needs to be in front of you." "Target not in line of sight" "Target too close" "You are dead" "You are in combat" "You are in shapeshift form" "You are unable to move" "You can't do that yet" "You must be behind your target."

Miss Type "ABSORB" "BLOCK" "DEFLECT" "DODGE" "EVADE" "IMMUNE" "MISS" "PARRY" "REFLECT" "RESIST" Aura Type "BUFF" "DEBUFF" Environmental Type "Drowning" "Falling" "Fatigue" "Fire" "Lava" "Slime"

Example

Script

• Prints all CLEU parameters.

local function OnEvent(self, event)
	print(CombatLogGetCurrentEventInfo())
end

local f = CreateFrame("Frame")
f:RegisterEvent("COMBAT_LOG_EVENT_UNFILTERED")
f:SetScript("OnEvent", OnEvent)

• Displays your spell or melee critical hits.

local playerGUID = UnitGUID("player")
local MSG_CRITICAL_HIT = "Your %s critically hit %s for %d damage!"

local f = CreateFrame("Frame")
f:RegisterEvent("COMBAT_LOG_EVENT_UNFILTERED")
f:SetScript("OnEvent", function(self, event)
	local _, subevent, _, sourceGUID, _, _, _, _, destName = CombatLogGetCurrentEventInfo()
	local spellId, amount, critical

	if subevent == "SWING_DAMAGE" then
		amount, _, _, _, _, _, critical = select(12, CombatLogGetCurrentEventInfo())
	elseif subevent == "SPELL_DAMAGE" then
		spellId, _, _, amount, _, _, _, _, _, critical = select(12, CombatLogGetCurrentEventInfo())
	end

	if critical and sourceGUID == playerGUID then
		-- get the link of the spell or the MELEE globalstring
		local action = spellId and GetSpellLink(spellId) or MELEE
		print(MSG_CRITICAL_HIT:format(action, destName, amount))
	end
end)

Payload

This comparison illustrates the difference between swing and spell events, e.g. the amount suffix parameter is on arg12 for SWING_DAMAGE and arg15 for SPELL_DAMAGE.

1617986084.18, "SWING_DAMAGE", false, "Player-1096-06DF65C1", "Xiaohuli", 1297, 0, "Creature-0-4253-0-160-94-000070569B", "Cutpurse", 68168, 0, 3, -1, 1, nil, nil, nil, true, false, false, false

1617986113.264, "SPELL_DAMAGE", false, "Player-1096-06DF65C1", "Xiaohuli", 1297, 0, "Creature-0-4253-0-160-94-000070569B", "Cutpurse", 68168, 0, 585, "Smite", 2, 47, 19, 2, nil, nil, nil, false, false, false, false

SWING_DAMAGE Idx Param Value self <Frame> event "COMBAT_LOG_EVENT_UNFILTERED" 1 timestamp 1617986084.18 2 subevent "SWING_DAMAGE" 3 hideCaster false 4 sourceGUID "Player-1096-06DF65C1" 5 sourceName "Xiaohuli" 6 sourceFlags 1297 7 sourceRaidFlags 0 8 destGUID "Creature-0-4253-0-160-94-000070569B" 9 destName "Cutpurse" 10 destFlags 68168 11 destRaidFlags 0 12 amount 3 13 overkill -1 14 school 1 15 resisted nil 16 blocked nil 17 absorbed nil 18 critical true 19 glancing false 20 crushing false 21 isOffHand false

SPELL_DAMAGE Idx Param Value self <Frame> event "COMBAT_LOG_EVENT_UNFILTERED" 1 timestamp 1617986113.264 2 subevent "SPELL_DAMAGE" 3 hideCaster false 4 sourceGUID "Player-1096-06DF65C1" 5 sourceName "Xiaohuli" 6 sourceFlags 1297 7 sourceRaidFlags 0 8 destGUID "Creature-0-4253-0-160-94-000070569B" 9 destName "Cutpurse" 10 destFlags 68168 11 destRaidFlags 0 12 spellId 585 13 spellName "Smite" 14 spellSchool 2 15 amount 47 16 overkill 19 17 school 2 18 resisted nil 19 blocked nil 20 absorbed nil 21 critical false 22 glancing false 23 crushing false 24 isOffHand false

Details

Event Trace

/etrace with CLEU params.

For the new event trace tool added in Patch 9.1.0 the following script can be loaded.

local function LogEvent(self, event, ...)
	if event == "COMBAT_LOG_EVENT_UNFILTERED" or event == "COMBAT_LOG_EVENT" then
		self:LogEvent_Original(event, CombatLogGetCurrentEventInfo())
	elseif event == "COMBAT_TEXT_UPDATE" then
		self:LogEvent_Original(event, (...), GetCurrentCombatTextEventInfo())
	else
		self:LogEvent_Original(event, ...)
	end
end

local function OnEventTraceLoaded()
	EventTrace.LogEvent_Original = EventTrace.LogEvent
	EventTrace.LogEvent = LogEvent
end

if EventTrace then
	OnEventTraceLoaded()
else
	local frame = CreateFrame("Frame")
	frame:RegisterEvent("ADDON_LOADED")
	frame:SetScript("OnEvent", function(self, event, ...)
		if event == "ADDON_LOADED" and (...) == "Blizzard_EventTrace" then
			OnEventTraceLoaded()
			self:UnregisterAllEvents()
		end
	end)
end

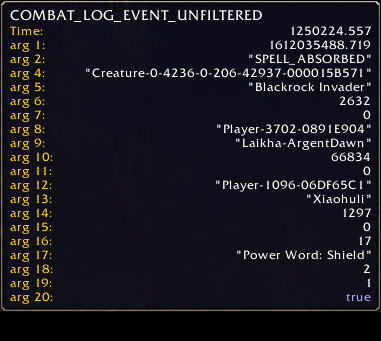

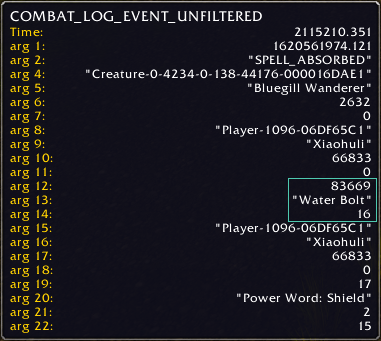

SPELL_ABSORBED

This relatively new subevent fires in addition to SWING_MISSED / SPELL_MISSED which already have the "ABSORB" missType and same amount. It optionally includes the spell payload if triggered from what would be SPELL_DAMAGE.

timestamp, subevent, hideCaster, sourceGUID, sourceName, sourceFlags, sourceRaidFlags, destGUID, destName, destFlags, destRaidFlags, [spellID, spellName, spellSchool], casterGUID, casterName, casterFlags, casterRaidFlags, absorbSpellId, absorbSpellName, absorbSpellSchool, amount, critical

-- swing
1620562047.156, "SWING_MISSED", false, "Creature-0-4234-0-138-44176-000016DAE1", "Bluegill Wanderer", 2632, 0, "Player-1096-06DF65C1", "Xiaohuli", 66833, 0, "ABSORB", false, 13, false
1620562047.156, "SPELL_ABSORBED", false, "Creature-0-4234-0-138-44176-000016DAE1", "Bluegill Wanderer", 2632, 0, "Player-1096-06DF65C1", "Xiaohuli", 66833, 0, "Player-1096-06DF65C1", "Xiaohuli", 66833, 0, 17, "Power Word: Shield", 2, 13, false

-- spell
1620561974.121, "SPELL_MISSED", false, "Creature-0-4234-0-138-44176-000016DAE1", "Bluegill Wanderer", 2632, 0, "Player-1096-06DF65C1", "Xiaohuli", 66833, 0, 83669, "Water Bolt", 16, "ABSORB", false, 15, false
1620561974.121, "SPELL_ABSORBED", false, "Creature-0-4234-0-138-44176-000016DAE1", "Bluegill Wanderer", 2632, 0, "Player-1096-06DF65C1", "Xiaohuli", 66833, 0, 83669, "Water Bolt", 16, "Player-1096-06DF65C1", "Xiaohuli", 66833, 0, 17, "Power Word: Shield", 2, 15, false

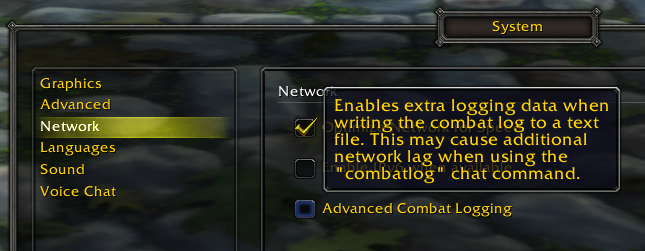

Advanced Combat Log

Combat log messages may be written to the World of Warcraft\_retail_\Logs\WoWCombatLog.txt file for external parsing purposes. This feature can be enabled with LoggingCombat(true) or toggled with the /combatlog slash command. Combat logging was added on patch 1.7.0^[2]

COMBAT_LOG_VERSION

This log line is added when combat logging starts.

11/21 12:01:34.071  COMBAT_LOG_VERSION,19,ADVANCED_LOG_ENABLED,1,BUILD_VERSION,9.1.5,PROJECT_ID,1

Advanced parameters

There can be up to 39 parameters, in order:

• 9 base params (subevent, source and dest unit)
• 0 to 3 prefix params (spell/environmental)
• 17 advanced params
• 0 to 10 suffix params

Advanced parameters require CVar advancedCombatLoggingDefault: 0
Whether we want advanced combat log data sent from the server (added in 5.4.2)^[3] to be enabled for meaningful values.

Idx	Param	Example	Description
1	infoGUID	Player-1096-06DF65C1	GUID of the advanced params unit
2	ownerGUID	0000000000000000	GUID of the owner in case of pets/minions
3	currentHP	584	Unit current HP
4	maxHp	584	Unit max HP
5	attackPower	3	Unit attack power
6	spellPower	75	Unit spell power
7	armor	19	Unit armor
8	absorb	0	Unit applied absorb amount
9	powerType	0	Enum.PowerType
10	currentPower	430	Unit current power
11	maxPower	430	Unit max power
12	powerCost	1	Required power amount for the ability
13	positionX	-9250.90	Unit X position on the map instance
14	positionY	158.82	Unit Y position on the map instance
15	uiMapID	37	UiMapID
16	facing	5.5502	Unit facing direction in the [0, 2π] range
17	level	13	Level for NPCs, item level for players

Example for a low level priest in Elwynn Forest successfully casting a spell.

4/9 05:05:01.824  SPELL_CAST_SUCCESS,Player-1096-06DF65C1,"Xiaohuli-DefiasBrotherhood",0x511,0x0,Creature-0-4253-0-160-94-00006FB363,"Cutpurse",0x10a48,0x0,585,"Smite",0x2,Player-1096-06DF65C1,0000000000000000,584,584,3,75,19,0,0,430,430,1,-9250.90,158.82,37,5.5502,13

4/9 05:05:01.824  SPELL_DAMAGE,Player-1096-06DF65C1,"Xiaohuli-DefiasBrotherhood",0x511,0x0,Creature-0-4253-0-160-94-00006FB363,"Cutpurse",0x10a48,0x0,585,"Smite",0x2,Creature-0-4253-0-160-94-00006FB363,0000000000000000,105,152,0,0,189,0,1,0,0,0,-9213.11,144.31,37,1.7189,30,46,45,-1,2,0,0,0,nil,nil,nil

These coords are also returned from C_Map.GetWorldPosFromMapPos() and UnitPosition() (provided the player is not in an instanced area).

local uiMap = C_Map.GetBestMapForUnit("player")
local pos = C_Map.GetPlayerMapPosition(uiMap, "player")
local continentID, worldPos = C_Map.GetWorldPosFromMapPos(uiMap, pos)

print(continentID, worldPos:GetXY()) -- 0, -9250.8974609375, 158.81927490234
print(UnitPosition("player")) -- -9250.900390625, 158.80000305176, 0, 0

Multiple Values

Some events can have multiple values for a param, delimited by a | vertical bar, for example 3|4,120|5,120|5,25|5 for powerType, currentPower, maxPower, powerCost respectively. This is the case when spells use more than one powertype to cast.

12/27 20:40:53.015  SPELL_CAST_SUCCESS,Player-3686-09B3C091,"Katara-Antonidas",0x514,0x0,Vehicle-0-4252-2450-10829-175732-00004A11DB,"Sylvanas Windrunner",0x10a48,0x0,1943,"Rupture",0x1,Player-3686-09B3C091,0000000000000000,55660,55660,2018,321,689,8046,3|4,120|5,120|5,25|5,230.09,-841.17,2002,3.8727,249

Death Events

For the following events, recapID is changed with (possibly) unconsciousOnDeath

11/18 21:07:31.950  PARTY_KILL,Player-3686-070D56DD,"Môrclen-Antonidas",0x10512,0x0,Creature-0-1465-2450-15939-178008-000016B283,"Decrepit Orb",0xa48,0x0,0
10/26 21:06:20.604  SPELL_INSTAKILL,Creature-0-1469-2450-16377-99773-000078519D,"Bloodworm",0x2114,0x0,Creature-0-1469-2450-16377-99773-000078519D,"Bloodworm",0x2114,0x0,197509,"Bloodworm",0x20,0
10/26 21:18:26.917  UNIT_DIED,0000000000000000,nil,0x80000000,0x80000000,Creature-0-1469-2450-16377-99773-0000785473,"Bloodworm",0x2114,0x0,0
10/26 21:18:22.056  UNIT_DESTROYED,0000000000000000,nil,0x80000000,0x80000000,Creature-0-1469-2450-16377-26125-0000785441,"Risen Ghoul",0x2114,0x0,0

SPELL_AURA_REFRESH

This is missing the amount param.

10/26 20:45:44.932  SPELL_AURA_REFRESH,Player-3686-0672A7D3,"Slivered-Antonidas",0x511,0x0,Player-3686-0672A7D3,"Slivered-Antonidas",0x511,0x0,21562,"Power Word: Fortitude",0x2,BUFF

SPELL_HEAL_ABSORBED

This has an additional 9th suffix param totalAmount

10/26 21:06:21.326  SPELL_HEAL_ABSORBED,Vehicle-0-1469-2450-16377-175732-0000784ACE,"Sylvanas Windrunner",0x10a48,0x0,Player-3686-0672A7D3,"Slivered-Antonidas",0x511,0x0,347704,"Veil of Darkness",0x20,Player-3686-0672A7D3,"Slivered-Antonidas",0x511,0x0,77489,"Echo of Light",0x2,104,667

_DAMAGE and _HEAL

• SWING_DAMAGE, SPELL_DAMAGE, SPELL_HEAL, SPELL_PERIODIC_DAMAGE, and SPELL_PERIODIC HEAL: These have an additional 2nd suffix parameter, baseAmount. This is the amount before critical strike bonus, and before percent modifiers on the target, including effects like damage reduction from armor, [Chaos Brand], [Mortal Strike], etc.

SWING_DAMAGE

• SWING_DAMAGE: infoGUID is the source unit. This event is not guaranteed to fire, in that case SWING_MISSED would fire or nothing at all.
• SWING_DAMAGE_LANDED: infoGUID is the dest unit. This event is exclusive to the advanced combat log and always fires.

4/9 05:05:07.807  SWING_DAMAGE,Player-1096-06DF65C1,"Xiaohuli-DefiasBrotherhood",0x511,0x0,Creature-0-4253-0-160-94-00006FB363,"Cutpurse",0x10a48,0x0,Player-1096-06DF65C1,0000000000000000,584,584,3,75,19,0,0,430,430,0,-9250.90,158.82,37,5.5502,13,1,0,-1,1,0,0,0,nil,nil,nil

4/9 05:05:07.807  SWING_DAMAGE_LANDED,Player-1096-06DF65C1,"Xiaohuli-DefiasBrotherhood",0x511,0x0,Creature-0-4253-0-160-94-00006FB363,"Cutpurse",0x10a48,0x0,Creature-0-4253-0-160-94-00006FB363,0000000000000000,104,152,0,0,189,0,1,0,0,0,-9245.84,156.92,37,2.8016,30,1,0,-1,1,0,0,0,nil,nil,nil

SPELL_ENERGIZE

• SPELL_ENERGIZE: This has an additional 4th suffix param, possibly maxPower

11/18 20:44:41.889  SPELL_ENERGIZE,Player-3686-065B1FFB,"Withered-Antonidas",0x511,0x0,Player-3686-065B1FFB,"Withered-Antonidas",0x511,0x0,336637,"Grounding Breath",0x1,Player-3686-065B1FFB,0000000000000000,58296,58296,2246,2160,687,243,0,43673,50000,0,243.55,-868.29,2002,2.3365,248,1900.0000,0.0000,0,50000

• SPELL_DRAIN: This has an additional 4th suffix param, possibly maxPower

11/18 22:59:04.817  SPELL_DRAIN,Vehicle-0-1465-2450-15939-178072-000016CA7A,"Anduin Wrynn",0xa48,0x0,Vehicle-0-1465-2450-15939-178072-000016CA7A,"Anduin Wrynn",0xa48,0x0,357730,"Blasphemy",0x2,Vehicle-0-1465-2450-15939-178072-000016CA7A,0000000000000000,36198842,36339500,0,0,1071,0,0,0,2568,0,-246.06,-1280.08,2004,4.3350,62,5000,0,0,2568

ARENA_MATCH_START / END

ARENA_MATCH_START: instanceID, unk, matchType, teamId
ARENA_MATCH_START,1505,0,Skirmish,0

ARENA_MATCH_END: winningTeam, matchDuration, newRatingTeam1, newRatingTeam2
ARENA_MATCH_END,0,58,0,0

CHALLENGE_MODE_START / END

CHALLENGE_MODE_START: zoneName, instanceID, challengeModeID, keystoneLevel, [affixID, ...]
CHALLENGE_MODE_START,"Mists of Tirna Scithe",2290,375,11,[9,122,4,121]

CHALLENGE_MODE_END: instanceID, success, keystoneLevel, totalTime

• totalTime: time in milliseconds, and including the time penalties for deaths

EMOTE

Emotes don't include a dest unit, compared to in-game events like CHAT_MSG_RAID_BOSS_EMOTE.

EMOTE: sourceGUID, sourcename, sourceflags, sourceraidflags, text
EMOTE,Vehicle-0-1465-2450-15939-175732-000016A7D7,"Sylvanas Windrunner",0000000000000000,nil,|TInterface\ICONS\Achievement_Leader_Sylvanas.blp:20|t Sylvanas Windrunner gains |cFFFF0000|Hspell:347504|h[Windrunner]|h|r!

ENCOUNTER_START / END

ENCOUNTER_START: encounterID, encounterName, difficultyID, groupSize, instanceID
ENCOUNTER_START,1146,"Randolph Moloch",1,5,34

ENCOUNTER_END: encounterID, encounterName, difficultyID, groupSize, success, fightTime
ENCOUNTER_END,2435,"Sylvanas Windrunner",15,16,1,671425

• success is 1 for a kill, 0 for a wipe
• fightTime is in milliseconds.

MAP_CHANGE

The coords are the boundary box for the world map.

MAP_CHANGE: uiMapID, uiMapName, x0, x1, y0, y1
MAP_CHANGE,37,"Elwynn Forest",-7939.580078,-10254.200195,1535.420044,-1935.420044

/dump C_Map.GetWorldPosFromMapPos(37, {x=0, y=0}) -- x = -7939.580078125, y = 1535.4200439453
/dump C_Map.GetWorldPosFromMapPos(37, {x=1, y=1}) -- x = -10254.200195312, y = -1935.4200439453
/dump C_Map.GetMapWorldSize(37) -- 3470.8400878906, 2314.6201171875

WORLD_MARKER_PLACED / REMOVED

WORLD_MARKER_PLACED: instanceID, marker, x, y
WORLD_MARKER_PLACED,2450,2,269.82,-828.35

WORLD_MARKER_REMOVED: marker
WORLD_MARKER_REMOVED,2

ZONE_CHANGE

ZONE_CHANGE: instanceID, zoneName, difficultyID
ZONE_CHANGE,34,"Stormwind Stockade",1

COMBATANT_INFO

This logging feature was added on patch 7.0.3

New Logging Feature: COMBATANT_INFO | 2016-01-13 00:00 |  Celestalon

Whenever an ENCOUNTER_START event occurs, a new “COMBATANT_INFO” log line will also be printed for each player in the instance. The current data structure for COMBATANT_INFO is as follows, but is subject to change based on feedback and technical needs:

COMBATANT_INFO,playerGUID,Strength,Agility,Stamina,Intelligence,Dodge,Parry,Block,CritMelee,CritRanged,CritSpell,Speed,Lifesteal,HasteMelee,HasteRanged,HasteSpell,Avoidance,Mastery,VersatilityDamageDone,VersatilityHealingDone,VersatilityDamageTaken,Armor,CurrentSpecID,(Class Talent 1, ...),(PvP Talent 1, ...),[Artifact Trait ID 1, Trait Effective Level 1, ...],[(Equipped Item ID 1,Equipped Item iLvL 1,(Permanent Enchant ID, Temp Enchant ID, On Use Spell Enchant ID),(Bonus List ID 1, ...),(Gem ID 1, Gem iLvL 1, ...)) ...],[Interesting Aura Caster GUID 1, Interesting Aura Spell ID 1, ...]

Some clarifications about a few of those elements:

• Stats – Those are the current stat values at the time of the log line. Secondary stats are in terms of the Rating amount, not a %.
• Armor – This is the Armor amount before multipliers (such as Bear Form).
• Talents – A list of the selected talents. Today’s build will print this ID as a TalentID, a record type that is not dataminable. This will be fixed in a future build to be the SpellID of the talent.
• Artifact Traits – This will be a list of the selected traits for the character’s current specialization’s artifact (even if it’s not equipped). The Artifact Trait ID is an ID to a new record type to 7.0, which should be dataminable already. Trait Effective Level is the number of points placed in that talent. Note that some Relics will allow this to go beyond the max.
• Equipment – This is a list of all equipped gear on the character. The first ID is the standard Item ID of the item, followed by its ilvl. After that is a list of enchants on the item, one of each of the 3 possible enchantment types (using the ItemEnchantment ID).
• Interesting Auras – This is a list of interesting auras (buffs/debuffs) that we have manually flagged to be included in this log line. We’ll welcome feedback about what should be included here but currently plan for set bonuses, well fed, flasks, combat potions, Vantus runes, and player buffs. Nothing has been flagged for this yet, so you won’t see anything here in the current build.

View original post

On a character without any Shadowlands-specific powers.

4/22 05:27:15.478  COMBATANT_INFO,Player-3299-004E8630,1,132,184,906,653,0,0,0,257,257,257,11,0,188,188,188,0,118,90,90,90,120,257,(193155,64129,238136,200199,321377,193157,265202),(0,235587,215982,328530),[0,0,[],[],[]],[(173845,90,(),(1479,4786,6502),()),(158075,140,(),(4932,4933,6316),()),(157971,105,(),(1514,4786,6506),()),(3427,1,(),(),()),(157994,105,(),(1514,4786,6504),()),(173341,90,(0,0,4223),(6707),()),(174237,100,(),(4822,6516,6513,1487,4786),()),(173322,90,(),(6707),()),(158037,99,(),(4803,4802,42,6516,6515,1513,4786),()),(183675,110,(),(1482,4786),()),(173344,98,(),(6706),()),(174469,100,(),(4822,6516,6513,1487,4786),()),(173349,98,(),(6706),()),(175719,104,(),(6707,6901),()),(169223,133,(),(6276,1472),()),(165628,115,(),(5844,1527,4786),()),(0,0,(),(),()),(0,0,(),(),())],[Player-3299-004E8630,295365,Player-3299-004E8630,298268,Player-3299-004E8630,296320],1,0,0,0

Param	Example	Description
Event	COMBATANT_INFO	Version 18
PlayerGUID	Player-3299-004E8630
Faction	1	0: Horde, 1: Alliance
Character Stats
Strength	132
Agility	184
Stamina	906
Intelligence	653
Dodge	0
Parry	0
Block	0
CritMelee	257
CritRanged	257
CritSpell	257
Speed	11
Lifesteal	0
HasteMelee	188
HasteRanged	188
HasteSpell	188
Avoidance	0
Mastery	118
VersatilityDamageDone	90
VersatilityHealingDone	90
VersatilityDamageTaken	90
Armor	120
Class Talents
CurrentSpecID	257	Holy
Class Talent 1	(193155	Enlightenment
Class Talent 2	64129	Body and Soul
Class Talent 3	238136	Cosmic Ripple
Class Talent 4	200199	Censure
Class Talent 5	321377	Prayer Circle
Class Talent 6	193157	Benediction
Class Talent 7	265202)	Holy Word: Salvation
PvP Talents
PvP Talent 1	(0
PvP Talent 2	235587	Miracle Worker
PvP Talent 3	215982	Spirit of the Redeemer
PvP Talent 4	328530)	Divine Ascension
Artifact Traits
Artifact Trait ID 1	[0
Trait Effective Level 1	0
Artifact Trait ID 2	[]
Artifact Trait ID 3	[]
Artifact Trait ID 4	[]]
Equipped Items
Equipped Item ID 1	[(173845	Vile Manipulator's Hood
Equipped Item iLvL 1	90
Permanent Enchant ID Temp Enchant ID On Use Spell Enchant ID	()
Bonus List ID 1	(1479
Bonus List ID 2	4786
Bonus List ID 3	6502)
Gem ID 1	())
Equipped Item 2	(158075,140,(),(4932,4933,6316),())	Heart of Azeroth
Equipped Item 3	(157971,105,(),(1514,4786,6506),())	Sirensong Amice
Equipped Item 4	(3427,1,(),(),())	Stylish Black Shirt
Equipped Item 5	(157994,105,(),(1514,4786,6504),())	Sirensong Garments
Equipped Item 6	(173341,90,(0,0,4223),(6707),())	Cord of Uncertain Devotion
Equipped Item 7	(174237,100,(),(4822,6516,6513,1487,4786)	Breeches of Faithful Execution
Equipped Item 8	(173322,90,(),(6707),())	Sandals of Soul's Clarity
Equipped Item 9	(158037,99,(),(4803,4802,42,6516,6515,1513,4786),())	Squallshaper Cuffs
Equipped Item 10	(183675,110,(),(1482,4786),())	Cold Sweat Mitts
Equipped Item 11	(173344,98,(),(6706),())	Band of Chronicled Deeds
Equipped Item 12	(174469,100,(),(4822,6516,6513,1487,4786),())	Band of Insidious Ruminations
Equipped Item 13	(173349,98,(),(6706),())	Misfiring Centurion Controller
Equipped Item 14	(175719,104,(),(6707,6901),())	Agthia's Void-Tinged Speartip
Equipped Item 15	(169223,133,(),(6276,1472),())	Ashjra'kamas, Shroud of Resolve
Equipped Item 16	(165628,115,(),(5844,1527,4786),())	Sentinel's Branch
Equipped Item 17	(0,0,(),(),())
Equipped Item 18	(0,0,(),(),())]
Interesting Auras
Aura Caster GUID 1	[Player-3299-004E8630
Aura Spell ID 1	295365	Ancient Flame
Aura 2	Player-3299-004E8630,298268	Lucid Dreams
Aura 3	Player-3299-004E8630,296320]	Strive for Perfection
PvP Stats
Honor Level	1	UnitHonorLevel()
Season	0	Possibly only applicable in Arena
Rating	0
Tier	0

On a character with Shadowlands-specific powers, the Artifact Trait part is replaced with:

[18,1,[(343203,335,1),(348511,1432,1),(333759,995,1),(295965,56,1),(315288,357,1),(313833,264,1),(333505,1002,1),(295068,49,1)],[(1379),(1380),(1381),(1408),(1410),(1414),(1416),(1418)],[(233,200),(231,213),(244,213),(230,213)]]

Param	Example	Description
Soulbind ID	[18	Forgelite Prime Mikanikos
Covenant ID	1	Kyrian
Anima Powers
Anima Spell ID 1	[(343203	Ringing Doom
Maw Power ID 1	335	GetMawPowerLinkBySpellID()
Count 1	1)
Anima Power 2	(348511,1432,1)	Bloodgorged Leech
Anima Power 3	(333759,995,1)	Leather Apron
Anima Power 4	(295965,56,1)	Curious Miasma
Anima Power 5	(315288,357,1)	Frostbite Wand
Anima Power 6	(313833,264,1)	Shadowblade's Gift
Anima Power 7	(333505,1002,1)	Rupturing Spike
Anima Power 8	(295068,49,1)]	Abundance of Phantasma
Soulbind Traits
Soulbind Trait 1	[(1379)	Finesse Conduit
Soulbind Trait 2	(1380)	Endurance Conduit
Soulbind Trait 3	(1381)	Potency Conduit
Soulbind Trait 4	(1408)	Forgelite Filter
Soulbind Trait 5	(1410)	Hammer of Genesis
Soulbind Trait 6	(1414)	Endurance Conduit
Soulbind Trait 7	(1416)	Regenerating Materials
Soulbind Trait 8	(1418)]	Forgelite Prime's Expertise
Conduit Spells
Conduit ID 1	[(233	Quick Decisions
Conduit Level 1	200)
Conduit 2	(231,213)	Recuperator
Conduit 3	(244,213)	Count the Odds
Conduit 4	(230,213)]]	Nimble Fingers

Event Descriptions

Prefixes

Event Prefix	Description
SPELL_	Spell is the prefix for most effects even if the spell is a DoT or channeled. IE when the spell begins to be cast, SPELL_CAST_START is fired and not SPELL_PERIODIC_CAST_START. This is the same with _MISS, _FAILED, etc.
SPELL_PERIODIC	Only the effects that are periodic start with this PREFIX. IE: Successfully casting a DoT only happens once therefore even though the spell is periodic use the SPELL_ prefix. However, the damage is periodic so it will start with SPELL_PERIODIC_. 90% of the time you will only care about _DAMAGE or _HEAL.
SPELL_BUILDING	damage or healing that can affect destructable buildings.
ENVIRONMENTAL

Suffixes

Event Suffix	Description
_DAMAGE	Triggered on damage to health. Nothing Special. (overkill returns a number greater than or equal to zero)
_MISSED	Triggered When Effect isn't applied but mana/energy is used IE: ABSORB BLOCK DEFLECT DODGE EVADE IMMUNE MISS PARRY REFLECT RESIST
_HEAL	Triggered when a unit is healed
_HEAL_ABSORBED	Triggered when a spell absorbs the healing done by another spell. Extra info is provided for the healer and the heal spell, as well as the amount absorbed.
_ENERGIZE	Any effect that restores power. Spell/trinket/item set bonuses can trigger this event. IE: Vampiric Touch, or Mark of Defiance (Trinket)
_DRAIN	Same as _ENERGIZE but this time you are losing power. Caused by enemies.
_LEECH	Same as _DRAIN, but the source unit will simultaneously receive the same kind of power (specified in extraAmount)
_INTERRUPT	Spellcasting being interrupted by an ability such as Kick or Pummel.
_DISPEL	A buff or debuff being actively dispelled by a spell like Remove Curse or Dispel Magic. The source is the caster of the aura that was dispelled, and the destination is the target which was dispelled (needs verifying).
_DISPEL_FAILED	A failed attempt to dispel a buff or debuff, most likely due to immunity.
_STOLEN	A buff being transferred from the destination unit to the source unit (i.e. mages' Spellsteal).
_EXTRA_ATTACKS	Unit gains extra melee attacks due to an ability (like Sword Sepcialization or Windfury). These attacks usually happen in brief succession 100-200ms following this event.
_AURA_APPLIED	Triggered When Buffs/Debuffs are Applied. Note: This event doesn't fire if a debuff is applied twice without being removed. IE: casting Vampiric Embrace twice in a row only triggers this event once. This can make it difficult to track whether a debuff was successfully reapplied to the target. However, for instant cast spells, SPELL_CAST_SUCCESS can be used.
_AURA_REMOVED	Triggered When Buffs/Debuffs expire. The souce is the caster of the aura which faded, and the destination is the target from which the aura faded (needs verifying).
_AURA_APPLIED_DOSE	Triggered by stacking Debuffs if the debuff is already applied to a target. IE: If you cast Mind Flay twice it causes 2 doses of shadow vunerability, the first time it will trigger, SPELL_AURA_APPLIED (arg10 = shadow vulnerability), and SPELL_AURA_APPLIED_DOSE (arg10 = shadow vunerability) the second. The last argument reflects the new number of doses on the unit.
_AURA_REMOVED_DOSE	The opposite of _AURA_APPLIED_DOSE, reducing the amount of doses on a buff/debuff on the unit.
_AURA_REFRESH	Resets the expiration timer of a buff/debuff on the unit.
_AURA_BROKEN	A buff or debuff is being removed by melee damage. The source is the name of the caster of the aura that was broken, and the destination is the target which the aura broke off of (needs verifying).
_AURA_BROKEN_SPELL	A buff or debuff is being removed by spell damage (specified in extraSpell...). Source and destination is the same as the above.
_CAST_START	Triggered when a spell begins casting. Instant spells don't invoke this event. They trigger _CAST_SUCCESS, _FAILED instead.
_CAST_SUCCESS	Triggered when an instant spell is cast or when a spellcast finishes and doesn't fail. This isn't triggered when the spell misses. On a miss SPELL_MISS will be triggered instead.
_CAST_FAILED	If the cast fails before it starts (IE invalid target), then _CAST_START never triggers. However it is possible for a cast to fail after beginning. (IE you jump, move, hit escape etc.)
_INSTAKILL	Immediately kills the destination unit (usually happens when warlocks sacrifice their minions).
_DURABILITY_DAMAGE
_DURABILITY_DAMAGE_ALL
_CREATE	Creates an object (as opposed to an NPC who are 'summoned') like a hunter's trap or a mage's portal.
_SUMMON	Summmons an NPC such as a pet or totem.
_DISSIPATES	Fires when Gas Clouds are being extracted with Zapthrottle Mote Extractor

Special Events

Event	Description
UNIT_DIED	destGUID and destName refer to the unit that died.
PARTY_KILL	includes both sourceGUID and destGUID, but only reports for you (not in a party) or your other 4 party members (not raid members)

Patch changes

Retail

Patch 9.2.0 (2022-02-22): Added Cosmic spell school.
Patch 9.0.1 (2020-10-13): Chromatic was changed from 124 to 62, possibly in a previous patch.^[4]
Patch 8.0.1 (2018-07-17): COMBAT_LOG_EVENT and CLEU no longer have any payload, which is now returned by CombatLogGetCurrentEventInfo(). The payload itself is unchanged.
Patch 6.1.0 (2015-02-24): Additional parameters: recapID is added to UNIT_DIED; and unconsciousOnDeath is added to UNIT_DIED, UNIT_DESTROYED and UNIT_DISSIPATES.
Patch 5.0.4 (2012-08-28): The environmental types are now a non-localized, proper-case strings instead of capitalized ones (e.g. "Falling" instead "FALLING").
Patch 4.2.0 (2011-06-28): Added two new parameters, sourceRaidFlags and destRaidFlags, after sourceFlags and destFlags respectively.
Patch 4.1.0 (2011-04-26): Added hideCaster, after the event param.
Patch 2.4.0 (2008-03-25): Reworked to support filters and the terse format.

Classic

Patch 2.5.1 (2021-05-18): The spellId parameter is provided again in Burning Crusade Classic.
Hotfix (2020-06-22): The Combat Log is no longer restricted for dungeons and raids. The open world remains restricted to 50 yards.
Hotfix (2019-11-20): The Combat Log is restricted to events within 50 yards of the player. (Build 32600)
Patch 1.13.2 (2019-08-26): The spellId parameter is defunct in vanilla, returning 0 to resemble the pre-2.4.0 combat log.
