Returns updated UI widget information.

UPDATE_UI_WIDGET: widgetInfo

Payload[]

widgetInfo
UIWidgetInfo
Field Type Description
widgetID number UiWidget.db2
widgetSetID number UiWidgetSetID
widgetType Enum.UIWidgetVisualizationType
unitToken string? UnitId; Added in 9.0.1
Enum.UIWidgetVisualizationType
Value Key Data Function Description
0 IconAndText C_UIWidgetManager.GetIconAndTextWidgetVisualizationInfo
1 CaptureBar C_UIWidgetManager.GetCaptureBarWidgetVisualizationInfo
2 StatusBar C_UIWidgetManager.GetStatusBarWidgetVisualizationInfo
3 DoubleStatusBar C_UIWidgetManager.GetDoubleStatusBarWidgetVisualizationInfo
4 IconTextAndBackground C_UIWidgetManager.GetIconTextAndBackgroundWidgetVisualizationInfo
5 DoubleIconAndText C_UIWidgetManager.GetDoubleIconAndTextWidgetVisualizationInfo
6 StackedResourceTracker C_UIWidgetManager.GetStackedResourceTrackerWidgetVisualizationInfo
7 IconTextAndCurrencies C_UIWidgetManager.GetIconTextAndCurrenciesWidgetVisualizationInfo
8 TextWithState C_UIWidgetManager.GetTextWithStateWidgetVisualizationInfo
9 HorizontalCurrencies C_UIWidgetManager.GetHorizontalCurrenciesWidgetVisualizationInfo
10 BulletTextList C_UIWidgetManager.GetBulletTextListWidgetVisualizationInfo
11 ScenarioHeaderCurrenciesAndBackground C_UIWidgetManager.GetScenarioHeaderCurrenciesAndBackgroundWidgetVisualizationInfo
12 TextureAndText C_UIWidgetManager.GetTextureAndTextVisualizationInfo Added in 8.2.0
13 SpellDisplay C_UIWidgetManager.GetSpellDisplayVisualizationInfo Added in 8.1.0
14 DoubleStateIconRow C_UIWidgetManager.GetDoubleStateIconRowVisualizationInfo Added in 8.1.5
15 TextureAndTextRow C_UIWidgetManager.GetTextureAndTextRowVisualizationInfo Added in 8.2.0
16 ZoneControl C_UIWidgetManager.GetZoneControlVisualizationInfo Added in 8.2.0
17 CaptureZone C_UIWidgetManager.GetCaptureZoneVisualizationInfo Added in 8.2.5
18 TextureWithAnimation C_UIWidgetManager.GetTextureWithAnimationVisualizationInfo Added in 9.0.1
19 DiscreteProgressSteps C_UIWidgetManager.GetDiscreteProgressStepsVisualizationInfo Added in 9.0.1
20 ScenarioHeaderTimer C_UIWidgetManager.GetScenarioHeaderTimerWidgetVisualizationInfo Added in 9.0.1
21 TextColumnRow C_UIWidgetManager.GetTextColumnRowVisualizationInfo Added in 9.1.0
22 Spacer C_UIWidgetManager.GetSpacerVisualizationInfo Added in 9.1.0
23 UnitPowerBar C_UIWidgetManager.GetUnitPowerBarWidgetVisualizationInfo Added in 9.2.0
24 FillUpFrames C_UIWidgetManager.GetFillUpFramesWidgetVisualizationInfo Added in 10.0.0
25 TextWithSubtext C_UIWidgetManager.GetTextWithSubtextWidgetVisualizationInfo Added in 10.0.2
26 WorldLootObject Added in 10.1.0
27 ItemDisplay C_UIWidgetManager.GetItemDisplayVisualizationInfo Added in 10.1.0

Example[]

Prints UI widget information when UPDATE_UI_WIDGET fires.

local function OnEvent(self, event, w)
	local typeInfo = UIWidgetManager:GetWidgetTypeInfo(w.widgetType)
	local visInfo = typeInfo.visInfoDataFunction(w.widgetID)
	print(w.widgetSetID, w.widgetType, w.widgetID, visInfo)
end

local f = CreateFrame("Frame")
f:RegisterEvent("UPDATE_UI_WIDGET")
f:SetScript("OnEvent", OnEvent)

You can query the information from the specific data function yourself, or use visInfo which does it programmatically.

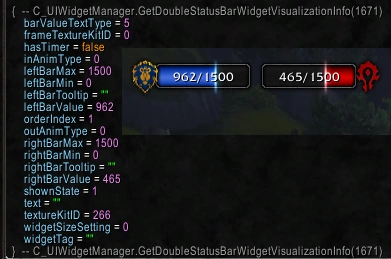

E.g. for the Arathi Basin PvP objective:

API C UIWidgetManager 03

  • Widget Set ID: 1 - Top center part of the screen
  • Widget Type: 3 - Enum.UIWidgetVisualizationType.DoubleStatusBar
  • Widget ID: 1671 - UiWidget.VisID -> UiWidgetVisualization.ID 1200 "PvP - Domination - Double Status Bar"
/dump C_UIWidgetManager.GetDoubleStatusBarWidgetVisualizationInfo(1671)

API C UIWidgetManager 01

Patch changes[]

Battle for Azeroth Patch 8.0.1 (2018-07-17): Added.
